Product SKU :
H510M
Array
Description

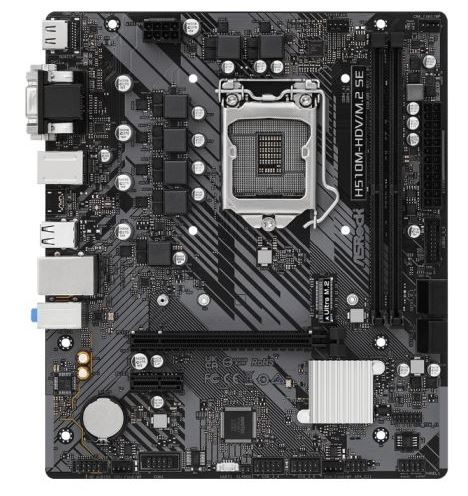

Asrock H510M-HDV/M.2 SE, Intel H510, 1200, Micro ATX, 2 DDR4, VGA, DVI, HDMI, M.2
Motherboard Type
Desktop
Form Factor
Micro ATX
Socket
Intel 1200 - Rocket Lake
Chipset
Intel H510
CPU Support
Click here for CPU support
RAM Technology
DDR4 Dual Channel
Supports non-ECC, un-buffered memory
Supports ECC UDIMM modules (operate in non-ECC mode)
Supports non-ECC, un-buffered memory
Supports ECC UDIMM modules (operate in non-ECC mode)
RAM Slots
2 x DIMM
RAM Speeds
Up to 2933 MHz
Maximum Memory
64GB
Graphics
Integrated Graphics*
*Graphics specifications may vary between CPU types
*Graphics specifications may vary between CPU types
Graphics Ports
1 x VGA
1 x DVI-D
1 x HDMI
1 x DVI-D
1 x HDMI
PCI/PCI Express
1 x PCIe 4.0 x16
1 x PCIe 3.0 x1
1 x PCIe 3.0 x1
Storage
4 x SATA III
1 x M.2 (2260/2280) - SATA & PCIe 3.0 x4
1 x M.2 (2260/2280) - SATA & PCIe 3.0 x4
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Wireless
-
LAN
GB LAN
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
USB Ports Supported
Rear:
4 x USB 3.2 Gen1 Type-A
2 x USB 2.0
Front:
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0
4 x USB 3.2 Gen1 Type-A
2 x USB 2.0
Front:
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0
Back Panel I/O Ports
1 x PS/2 Mouse/Keyboard
1 x D-Sub
1 x DVI-D
1 x HDMI
2 x USB 2.0
4 x USB 3.2 Gen1
1 x RJ-45 LAN
HD Audio Jacks
1 x D-Sub
1 x DVI-D
1 x HDMI
2 x USB 2.0
4 x USB 3.2 Gen1
1 x RJ-45 LAN
HD Audio Jacks
Internal I/O Connectors
1 x COM Port
1 x SPI TPM
1 x Chassis Intrusion and Speaker
1 x CPU Fan
1 x CPU/Water Pump Fan
2 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Panel Audio
2 x USB 2.0
1 x USB 3.2 Gen1
1 x SPI TPM
1 x Chassis Intrusion and Speaker
1 x CPU Fan
1 x CPU/Water Pump Fan
2 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Panel Audio
2 x USB 2.0
1 x USB 3.2 Gen1
Accessories
1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 Socket
1 x I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 Socket
Additional Features
See Overview
Package Type
Retail
Package Weight
To be confirmed
Warranty
3 Year Replacement Warranty
Full Box Quantity
20
