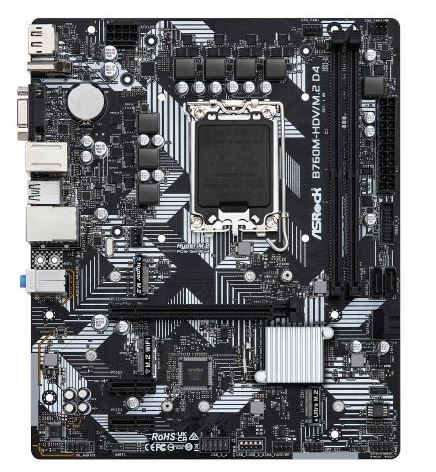

Catalogue COMPUTER COMPONENTS CATEGORY Main Board (Motherboard) ASROCK B760M HDV M.2 D4, 1700, MATX, DDR4, HDMI, DP, DSUB,3 PCIE, M.2, 4 SATA
Home Catalogue COMPUTER COMPONENTS CATEGORY Main Board (Motherboard) ASROCK B760M HDV M.2 D4, 1700, MATX, DDR4, HDMI, DP, DSUB,3 PCIE, M.2, 4 SATAASROCK B760M HDV M.2 D4, 1700, MATX, DDR4, HDMI, DP, DSUB,3 PCIE, M.2, 4 SATA
Product SKU :
ASROCK B760M
Array
Description
Asrock B760M-HDV/M.2 D4, Intel B760, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, GB LAN, PCIe4, 2x M.2
Motherboard Type
Desktop
Form Factor
Micro ATX
Socket
Intel 1700
Chipset
Intel B760
CPU Support
Click here for CPU support
RAM Technology
DDR4 (Dual Channel)
RAM Slots
2 x DIMM
RAM Speeds
Up to 5333+(OC)
Maximum Memory
64GB
Graphics
Integrated Graphics*
*Graphics specifications may vary between CPU types
*Graphics specifications may vary between CPU types
Graphics Ports
1 x VGA
1 x HDMI
1 x DisplayPort
1 x HDMI
1 x DisplayPort
PCI/PCI Express
1 x PCIe 4.0 x16 (supports x16 mode)
2 x PCIe 3.0 x1
2 x PCIe 3.0 x1
Storage
4 x SATA III
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2260/2280) - SATA & PCIe
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2260/2280) - SATA & PCIe
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Wireless
-
LAN
GB LAN
Audio
7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
USB Ports Supported
1 x USB 3.2 Gen1 Type-C (at back)
5 x USB 3.2 Gen1 Type-A (3 at back, 2 at mid-board)
5 x USB 2.0 (2 at back, 3 at mid-board)
5 x USB 3.2 Gen1 Type-A (3 at back, 2 at mid-board)
5 x USB 2.0 (2 at back, 3 at mid-board)
Back Panel I/O Ports
2 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard
1 x D-Sub
1 x HDMI
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C
3 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x RJ-45 LAN
HD Audio Jacks
1 x PS/2 Mouse/Keyboard
1 x D-Sub
1 x HDMI
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C
3 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x RJ-45 LAN
HD Audio Jacks
Internal I/O Connectors
1 x SPI TPM
1 x Chassis Intrusion and Speaker
1 x CPU Fan
1 x CPU/Water Pump Fan
2 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Panel Audio
2 x USB 2.0
1 x USB 3.2 Gen1
1 x Chassis Intrusion and Speaker
1 x CPU Fan
1 x CPU/Water Pump Fan
2 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Panel Audio
2 x USB 2.0
1 x USB 3.2 Gen1
Accessories
1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
3 x Screws for M.2 Sockets
1 x I/O Shield
2 x SATA Data Cables
3 x Screws for M.2 Sockets
Additional Features
See Overview
Package Type
Retail
Package Weight
0.9000 kg
Warranty
3 Year Replacement Warranty
Full Box Quantity
20
