Ubiquiti USW-Pro-48-POE Gen2

Email
Product SKU : USW-Pro-48-POE
Array
Description

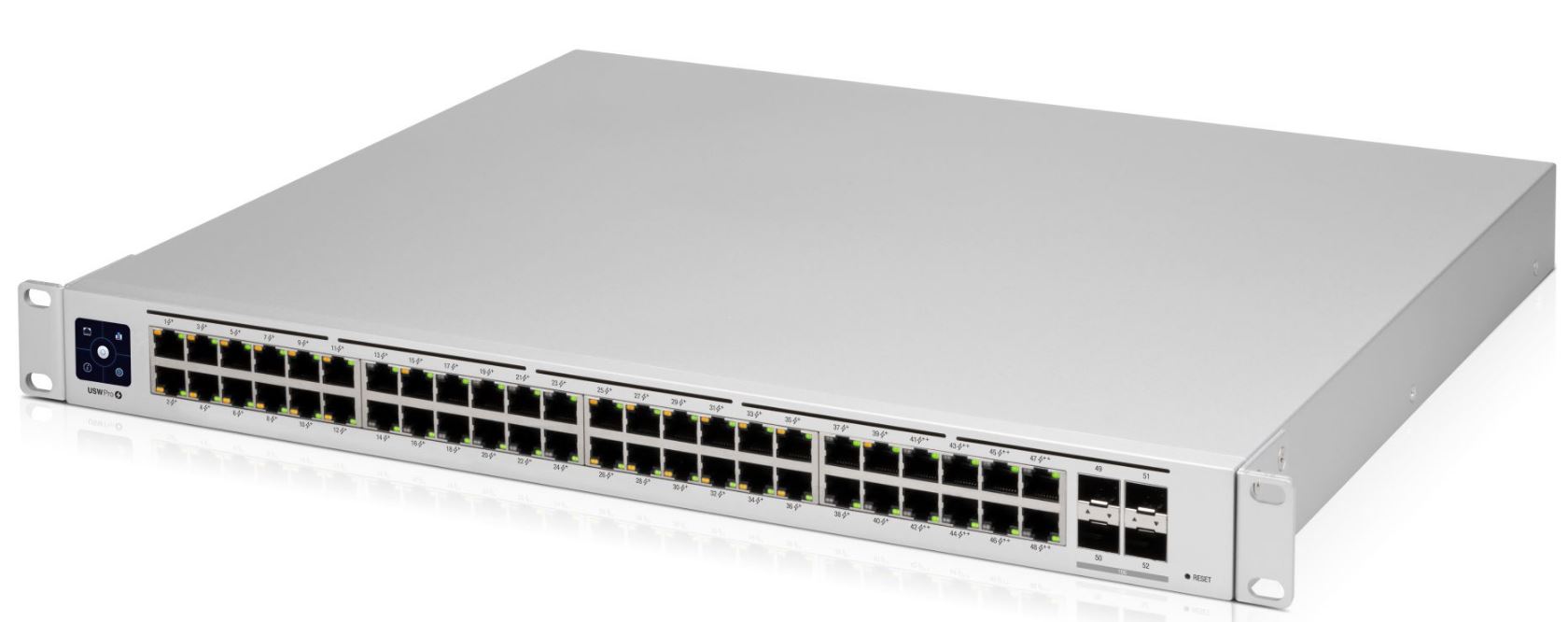

Ubiquiti USW-Pro-48-POE Gen2





The USW-Pro-48-POE is a configurable Gigabit Layer2 and Layer3 switch with auto-sensing 802.3at PoE+ and 802.3bt PoE++. Forty PoE+ and eight PoE++ RJ45 ports, four SFP+ ports.





DESCRIPTION

The USW-Pro-48-POE is a configurable Gigabit Layer2 and Layer3 switch with auto-sensing 802.3at PoE+ and 802.3bt PoE++. Forty PoE+ and eight PoE++ RJ45 ethernet ports have total 600W PoE budget, and four SFP+ ports offer 10Gbps uplink options. Near-silent cooling and a 1.3" touch LCM.



Note: Layer3 will be included in later software release.

SPECIFICATION
Switch Ports 48 Ports
Switch Type Managed
Forwarding Rate 130.944 Mpps
Tested ambient temperature -5°C to 40°C
ETHERNET
Switching Capacity 176 Gbps
10/100/1000 Ethernet ports 48
FIBER
SFP+ ports 4
POWERING
Power Method Universal Input: 100-240VAC, 50/60 Hz
USP RPS DC Input: 52VDC, 11.54A; 11.5VDC, 5.22A
Power Supply AC/DC, Internal, 660W
PoE Output Voltage 802.3af 44-57V
Max. PoE Wattage per Port 802.3at 32W
Number of PoE-out ports 48
Supported Input Voltage Range 100 to 240VAC
Max power consumption without attachments 60 W
