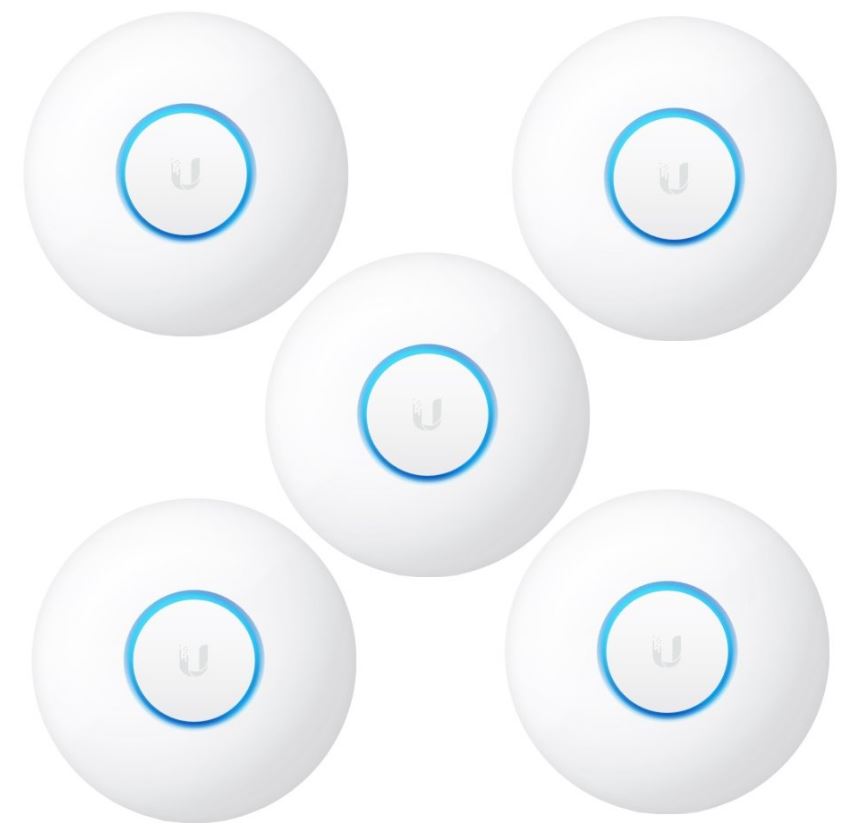

Ubiquiti UniFi UAP-nanoHD-5, Wave2 AC AP, PoE Not Included, 5-pack

Email
Product SKU : UAPHD5pk
Array
Description

Ubiquiti UniFi UAP-nanoHD-5, Wave2 AC AP, PoE Not Included, 5-pack

 5 PACK



Performance
Ethernet LAN data rates  The different speed levels of the Ethernet LAN connection. 10,100,1000  Mbit/s
Data transfer rate (max)  The maximum speed with which data can be transmitted from one device to another. 1733  Mbit/s
2.4 GHz Yes
5 GHz Yes
Number of users  The number of people that use or can use this product. 200  user(s)
Throughput  Rate at which data can be transferred. 300 Mbps/1733 Mbps
Quality of Service (QoS) support Yes
VLAN support  A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. Yes
Networking standards  The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1Q
Wireless isolation Yes
Wi-Fi Multimedia (WMM)/(WME) Yes
Reset button Yes
Certification CE, FCC, IC
Ports & interfaces
Ethernet LAN (RJ-45) ports  Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. 1
DC-in jack  The socket/plug where the DC electricity supply connects to the device. Yes
Security
Security algorithms  Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. AES,TKIP,WEP,WPA,WPA-Enterprise,WPA-PSK,WPA2
SSID Broadcast on/off Yes
Number of SSID support 8
Antenna
Antenna gain level (max)  Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. 3  dBi
Integrated antenna Yes
Power
Power consumption (typical)  Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. 10.5  W
Input voltage  The voltage (V) which is required to power the product. 44 - 57  V
Power over Ethernet (PoE)  The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. Yes
Design
Internal  The product is built in. Yes
Colour of product  The colour e.g. red, blue, green, black, white. White
Placement  Where the product can be placed e.g. floor, wall. Ceiling,Wall
Operational conditions
Operating relative humidity (H-H) 5 - 95  %
Operating temperature (T-T)  The minimum and maximum temperatures at which the product can be safely operated. -10 - 70  °C
Weight & dimensions
Width  The measurement or extent of something from side to side. 160  mm
Depth  The distance from the front to the back of something. 160  mm
Height  The measurement of the product from head to foot or from base to top. 32.65  mm
Weight  Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. 300  g
