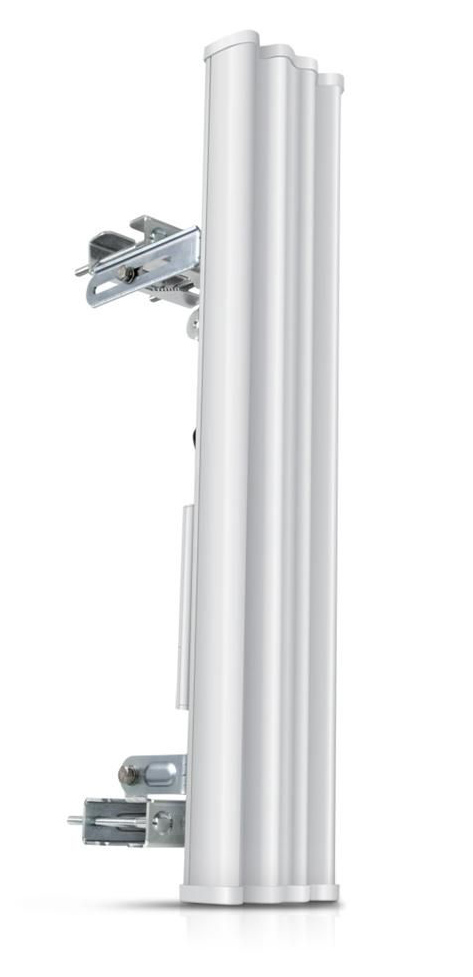

Ubiquiti Sector Antenna (AM-5G20-90)
Description
Antenna 5.1-5.9GHZ Mid-Gain Base Station, DUAL-POL 90-Degree 20DBI Ubiquiti
Antenna Airmax Sector 5G-90-20
|
Frequency Range |
5.15 - 5.85 Ghz |
|
Gain |
19.4 - 20.3 dBi |
|
Polarization |
Dual Linear |
|
Cross - Pol Isolation |
28 dB min. |
|
Max VSWR |
1.5:1 |
|
Hpol Beamwidth (6dB) |
91 deg. |
|
Vpol Beamwidth (6dB) |
85 deg. |
|
Elevation Beamwidth |
4 deg. |
|
Electrical Downtilt |
2 deg. |
|
ETSI Specification |
EN 302 326 DN2 |
|
Dimensions |
700x145x93 mm |
|
Weight |
5.9 kg |
|
Windloading |
|
