Description

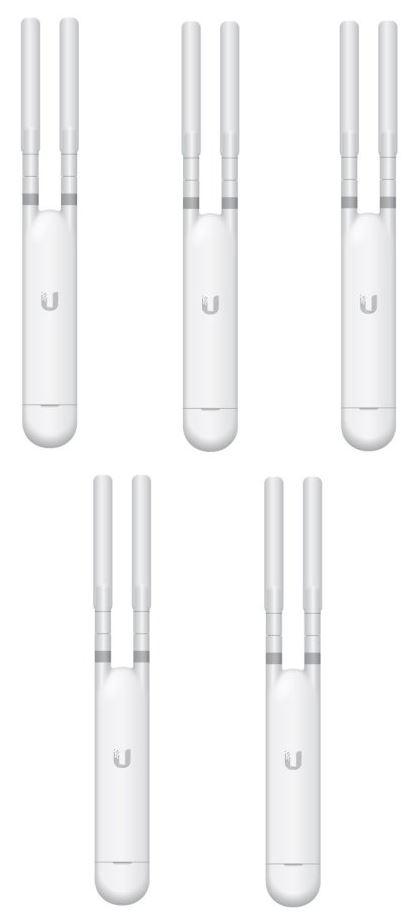

Ubiquiti UniFi AP AC Mesh, UAP-AC-M-5, 5 pack
Technical parameters
|
Connectors and Interfaces |
|
| RF connectors: | (2) RSMA female |
| LAN speed: | (1) 10/100/1000Mbps |
| Gigabit LAN: | Yes |
|
Physical characteristics |
|
| Purpose: | Outdoor |
| Buttons: | Reset |
| Operating temperature [°C]: | -30 up to 70 |
| Weight [g]: | 152 |
| Depth [mm]: | 34 |
| Width [mm]: | 46 |
| Height [mm]: | 353 |
|
Power |
|
| Power over Ethernet: | 802.3af, 24V DC, 44 .. 57V DC |
| PoE type: | PoE-In (only) |
| Max. power consumption [W]: | 8,5 |
|
Software |
|
| Operating mode: | Access Point |
| IPv6 support: | Transparent (bridge mode) |
| Default IP address: | Dynamic from DHCP |
| Default login and password: | ubnt / ubnt |
|
Wireless features |
|
| Wireless frequency: | 2.4 + 5 GHz (dual band) |
| WiFi standards: | 802.11ac, 802.11n, 802.11a, 802.11b/g |
| Hotspot 2.0: | Yes |
| Transmission speed - WiFi 2.4GHz [Mb/s]: | 300 |
| Transmission speed - WiFi 5GHz [Mb/s]: | 866 |
| Tx power 2.4GHz [dBm]: | 20 |
| Tx power 5GHz [dBm]: | 20 |
| Security: | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| 2.4GHz MIMO: | 2 x 2 |
| 5GHz MIMO: | 2 x 2 |
| Type of antenna: | Detachable |
| Detachable antennas: | 2 |
| Roaming: | Yes |
| Antenna gain [dBi]: | 4 |
