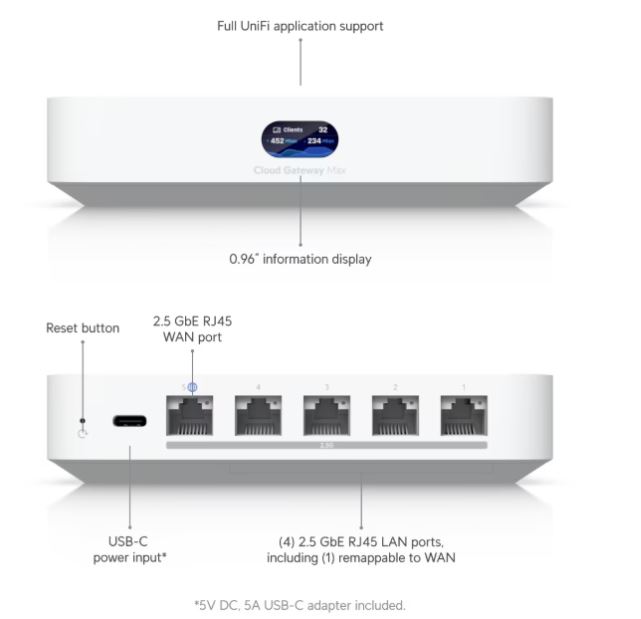

Cloud Gateway Max
Product SKU :
UCG-Max
Array
Description
Cloud Gateway Max
UCG-Max
Compact 2.5G Cloud Gateway with 30+ UniFi device / 300+ client support, 2.3 Gbps IPS routing, and selectable NVR storage
Dimensions
141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
UniFi Application Suite
Network
✓
Protect
✓
Access
✓
Talk
✓
Connect
✓
Managed UniFi Devices
30+
Managed Cameras
(15) HD (8) 2K (5) 4K
Managed Access Hubs
50
Simultaneous Users Connected
300+
Max. WAN Port Count
4
Default WAN Ports
(1) 2.5 GbE RJ45
Port Layout
2.5 GbE RJ45
5 (2.5G/1G/100M/10M)
IDS/IPS Throughput
2.3 Gbps
Form Factor
Compact desktop
Stateful Firewall
✓
Application-Aware Layer 7 Firewall
✓
DPI & Traffic Identification
✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
✓
Content Filtering
✓
Intrusion Prevention (IPS/IDS)
✓
Ad Blocking
✓
IDS/IPS Signatures
55,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation
✓
License-Free SD-WAN
✓
Site-to-Site VPN
Site Magic
✓
IPsec
✓
OpenVPN
✓
VPN Server
Identity Endpoint One-Click VPN
✓
Teleport Zero-Configuration VPN
✓
WireGuard
✓
OpenVPN
✓
L2TP
✓
VPN Client
OpenVPN
✓
WireGuard
✓
Multi-WAN Load Balancing
✓
Dynamic Routing
OSPF
✓
Advanced QoS
✓
Multicast DNS (mDNS)
✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
✓
Integrated RADIUS Server
✓
RADIUS over TLS (RadSec)
✓
Additional Internet Failover with UniFi LTE Backup
✓
Internet Quality and Outage Reporting
✓
MAC Address Table Size
2,000
Policy-based WAN and VPN Routing
✓
Customizable DHCP Server
✓
IPv6 ISP Support
✓
IGMP Proxy
✓
Virtual Network Override
✓
All Traffic Flows
✓
NVR Storage
Selectable NVMe SSD up to 2 TB
Max. Power Consumption
16.1W
Power Method
USB type C (5V DC/5A)
Power Supply
USB type C (5V DC/5A) (Adapter included)
Supported Voltage Range
100–240V AC
Heat Dissipation
55 BTU/hr
Processor
Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory
3 GB
Weight
Without SSD: 460 g (1 lb) With SSD: 519 g (1.1 lb)
Enclosure Material
Polycarbonate
LCM Display
0.96" status display
Management
Ethernet Bluetooth
LEDs
Ethernet
✓
Button
(1) Factory reset
ESD/EMP Protection
Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature
-10 to 40° C (14 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 09004-24-08356, SRRC
