NEW GEN-2 AC Model
Product SKU :
AP-5AC-90-HD
Array
Description

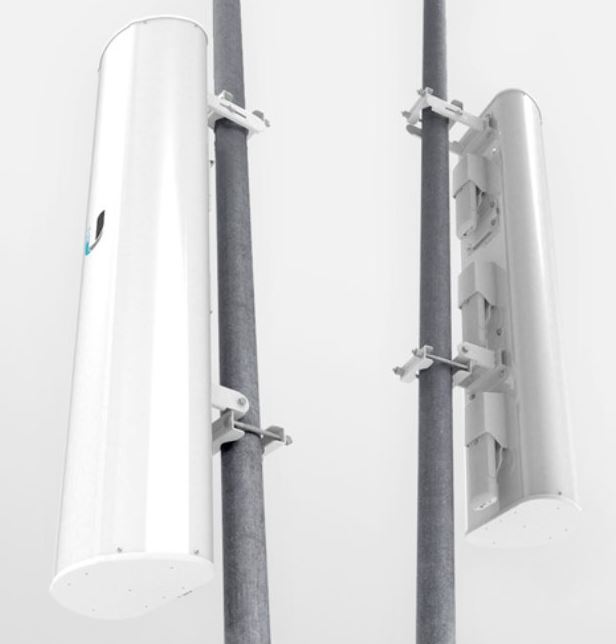

Ubiquiti AP-5AC-90-HD sector antenna airPrism, 5GHz, 22dBi, 2x2 MIMO, 90° (3x 30°), for Rocket 5AC-PRISM
Technical parameters
|
Connectors and Interfaces |
|
| Rocket kit: | Yes |
| RF connectors: | (6) RSMA male |
|
Physical characteristics |
|
| Wind load [km/h]: | 200 |
| Purpose: | Outdoor |
| Weight [kg]: | 13,1 |
| Depth [mm]: | 202 |
| Width [mm]: | 323 |
| Height [mm]: | 1330 |
|
Wireless features |
|
| Cross-Pol Isolation [dB]: | 30 |
| MIMO, SISO: | 2 x 2 |
| Polarization: | VH |
| VSWR: | < 1,75 |
| Wireless frequency: | 5 GHz |
| Azimuth beam width (-6dB) [°]: | 30, 8 |
| Antenna kind: | Sector |
| Antenna gain [dBi]: | 22 |
